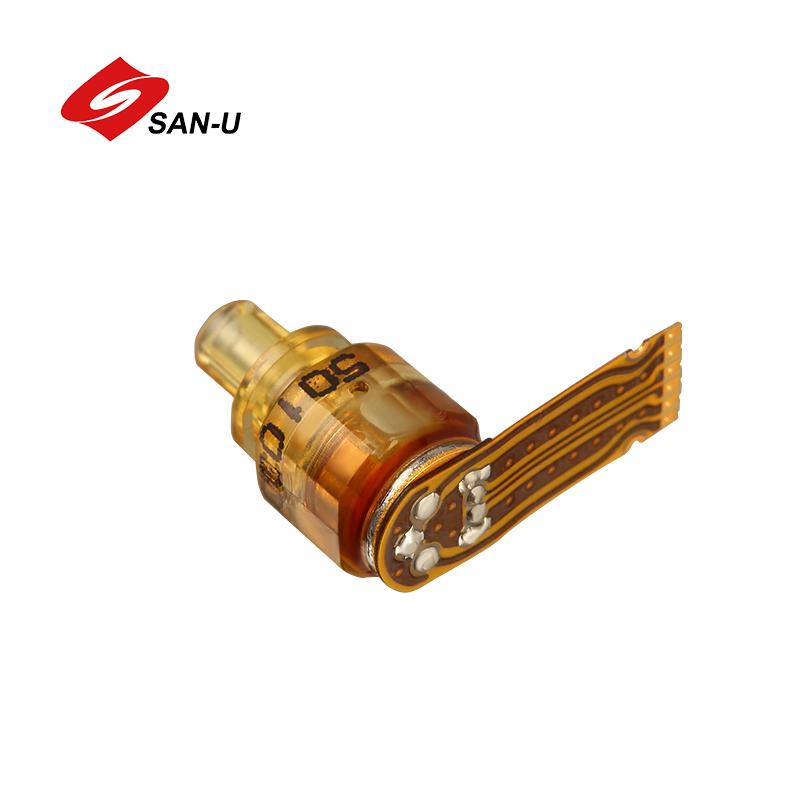

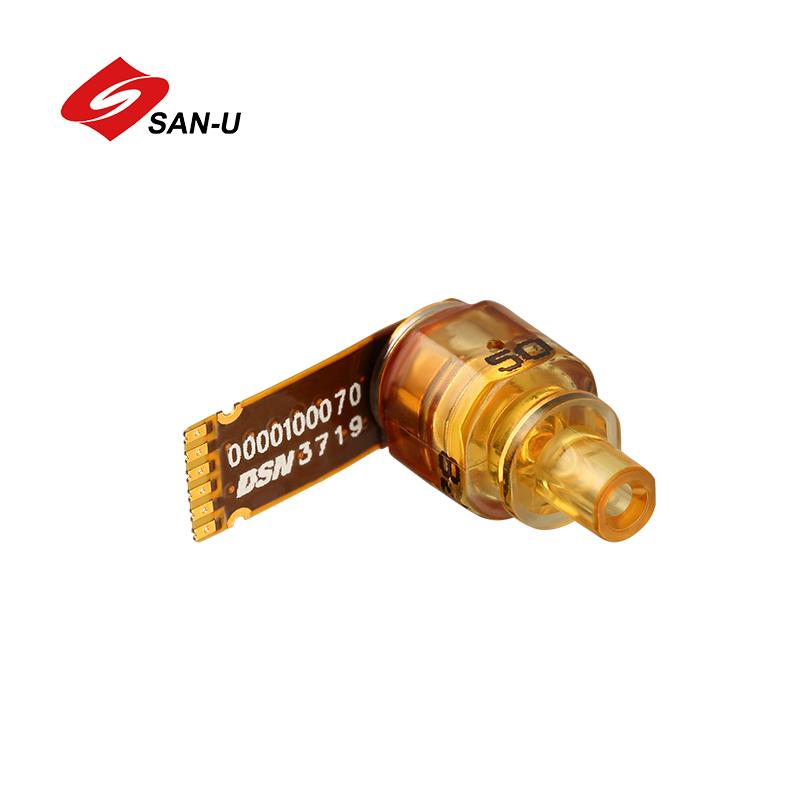

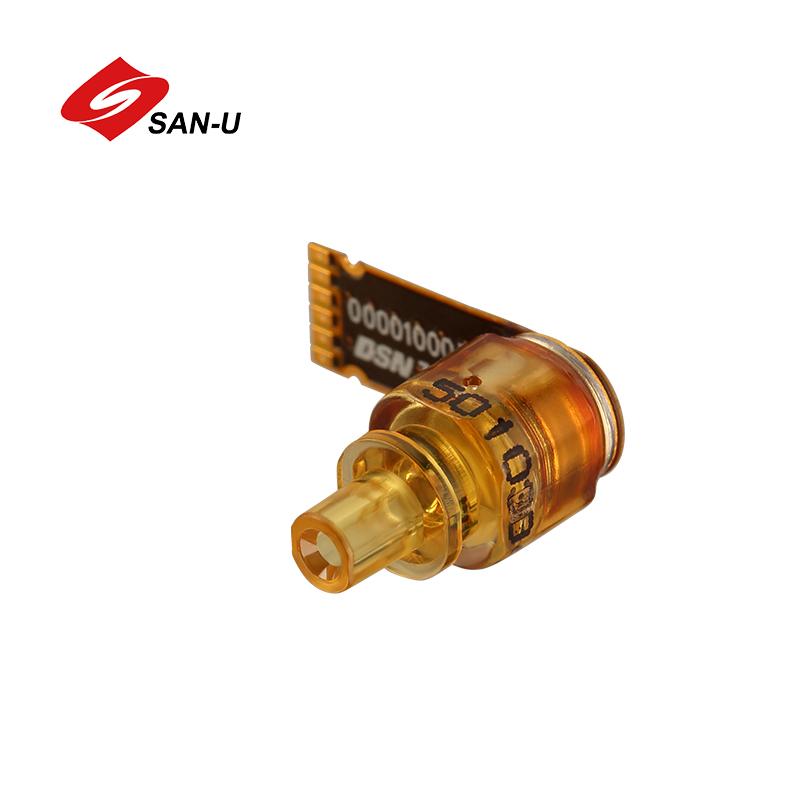

ROSA-LC 25Gbps 850nm with Flex
Features:
● Data rates up to 25Gbps.
● 850nm multimode.
● -40℃ to 85℃ Operation.
● Differential Output.
● Received signal strength indicator(RSSI).
● Single +3.3V Power Supply.
● LC plastic barrel, with flexible circuit attached.
Applications:
●High speed Data Communication.
Specifications:
Absolute Maximum Ratings
|
Parameter
|
Symbol
|
Min
|
Max.
|
Unit
|
|
Input optical power
|
Pin
|
--
|
5
|
dBm
|
|
Operating Temperature
|
Top
|
-40
|
85
|
℃
|
|
Storage Temperature
|
Tstg
|
-40
|
85
|
℃
|
|
Lead Solder Temperature
|
--
|
--
|
260
|
℃
|
|
Lead Soldering Time
|
--
|
--
|
10
|
s
|
Specifications (T=25°C, unless otherwise noted)
|
Parameter
|
Symbol
|
Test Conditions
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Supply Voltage
|
Vcc
|
--
|
2.97
|
3.3
|
3.63
|
V
|
|
Supply Current
|
Icc
|
Vcc=3.3V
|
--
|
26
|
33
|
mA
|
|
Operating Wavelength
|
λc
|
Vcc=3.3V
|
820
|
850
|
860
|
nm
|
|
RSSI Offset Current
|
Id
|
Vcc=3.3V
|
--
|
--
|
100
|
nA
|
|
Bandwidth
|
BW
|
-3dB
|
--
|
21
|
--
|
GHz
|
|
Overload
|
OL
|
Vcc=3.3V
|
-3
|
--
|
--
|
dBm
|
|
Sensitivity
|
Sen
|
25.78Gbps,PRBS31,
850nm,ER=4dB,
BER=10E-12
|
--
|
--
|
-9
|
dBm
|
